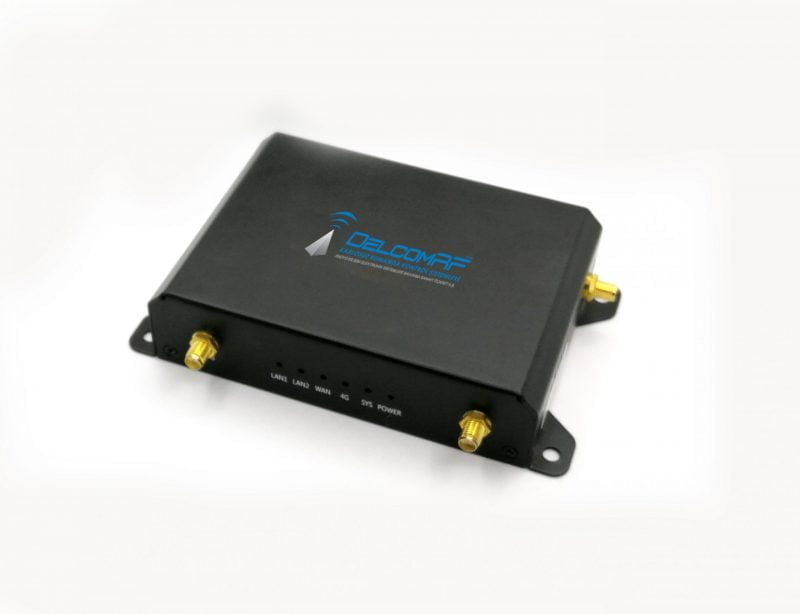

Industrial 4G LTE Router

Industrial 4G LTE Router has 150 Mbit download and 50 Mbit upload speed. It works between -40 to +85 degrees. It has Wi-Fi communication with 1 Wan + 2 Lan + RS485 and RS232 serial ports. It is used as an ethernet gateway as well as PLC or serial communications.

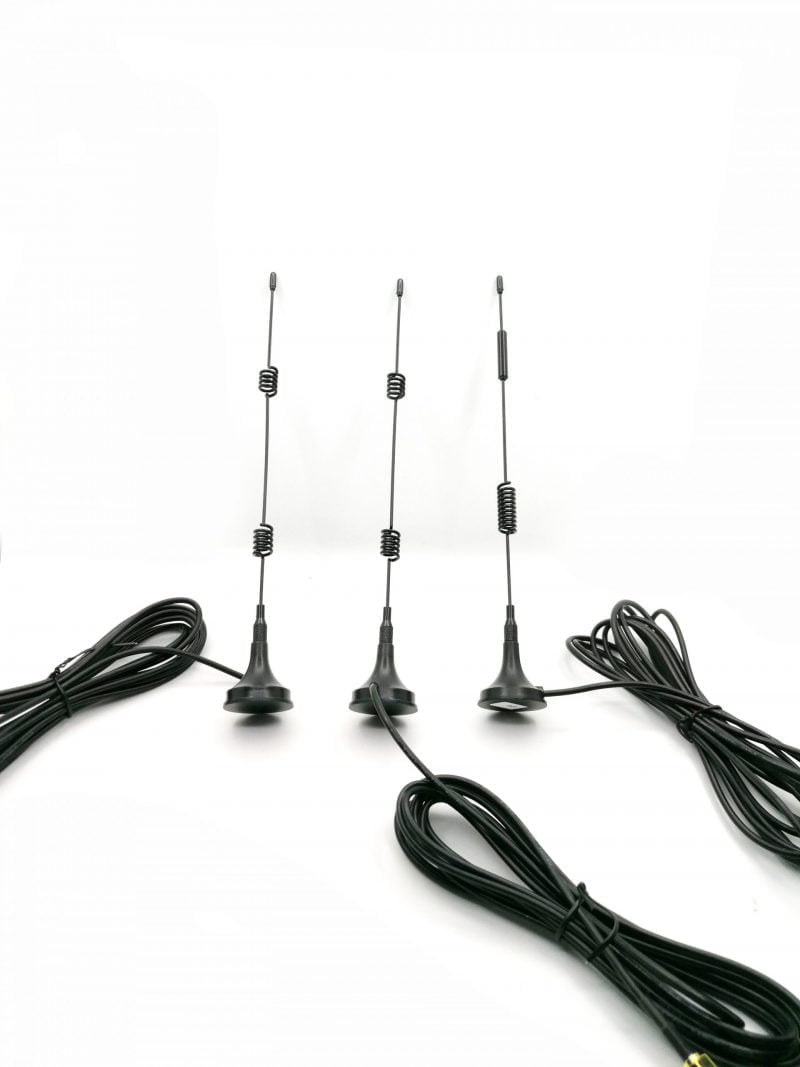

Economical Industrial 4G LTE Router has isolated RS-485 and RS-232 serial communication ports. Therefore, Modbus RTU communication can be provided at the same time. It has a Wi-Fi connection. Thus, it can distribute a wireless network around it. Metal and durable casing provides security for EMC. It is suitable for surface mounting. It is a set with magnetic antennas with 1.5 meters cable with 5 Dbi gain.

Affordable Industrial 4G LTE Router supports all your 2G-3G-4G LTE applications. It is completely secure and robust for industrial applications with features such as firewall hotspot functionality, OpenVPN, IPsec, hotspot and remote connection support. It has economical price and high performance.

Economical Industrial 4G LTE Router

Industrial 4G LTE Router is a true professional with industrial IoT applications and serial communication in a metal box. Supports industrial temperatures. It is more resistant to magnetic field pressure inside the panel. It is used as modbus TCP/IP, Ethernet, Transparent Data, Modbus DTU with industrial fast data communication in Scada, PLC or Camera systems.

Economical Industrial 4G LTE Router

Mobile Support4G (LTE) – 150 Mbps’ye kadar Cat 4 DL, 50Mbps’ye kadar UL; DC-HSPA +; UMTS; TD-SCDMA; EDGE; GPRS
ProcessorQualcom QCA9531
CPU Main Frequency650MHz
Memory
16 MB Flash, 128 MB DDR2 RAM
Ethernet3 x 10/100 Ethernet Connection Point 2 x WAN 1 x LAN
RS485 & RS232
Both Port and Screw Connector with Cable Connection Adapter
Connectors1 x Power 3 x Ethernet, 3 x Mobile SMA
SIM1 x SIM External
Status Leds WAN1 – WAN2 – LAN – SYS – 4G – Power
Çalışma Sıcaklığı-40 ° C to 85 ° C
MountingMounting Surface Mounted / Rail Mounted – Optional when ordering
BoxMetal Box Shell
Demensions30 mm x 85 mm x 120 mm ,Surface mounting lugs -10 mm additional protrusion
